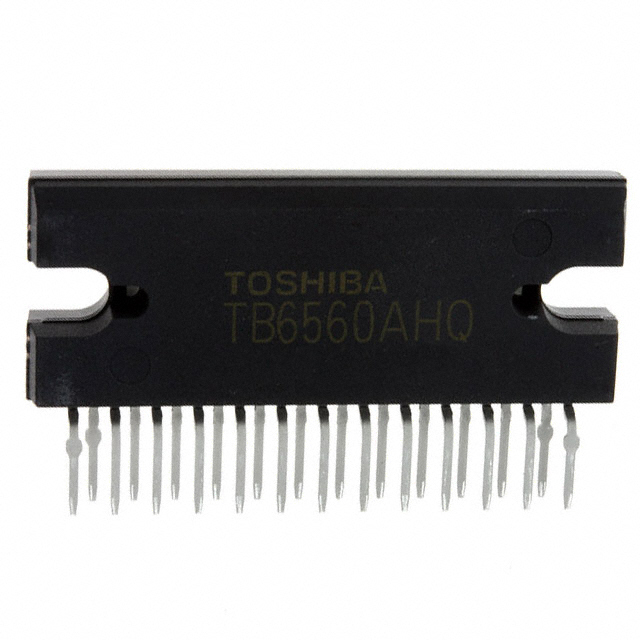

TB6560AHQ,8
Part Number: TB6560AHQ,8
Manufacturer: Toshiba
Package: 25-SIP, Formed Leads
Quantity: 1395
Description: IC MOTOR DRIVER PAR 25HZIP
Request Quantity:
PDF:

Product Information:


Standard Package:14
Motor Type - Stepper:Bipolar
Motor Type - AC, DC:-
Function:Driver - Fully Integrated, Control and Power Stage
Output Configuration:Half Bridge (4)
Interface:Parallel
Technology:Power MOSFET
Step Resolution:1, 1/2, 1/4, 1/8, 1/16
Applications:General Purpose
Current - Output:3A
Voltage - Supply:4.5 V ~ 5.5 V
Voltage - Load:4.5 V ~ 34 V
Operating Temperature:-30°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:25-SIP, Formed Leads
